Description

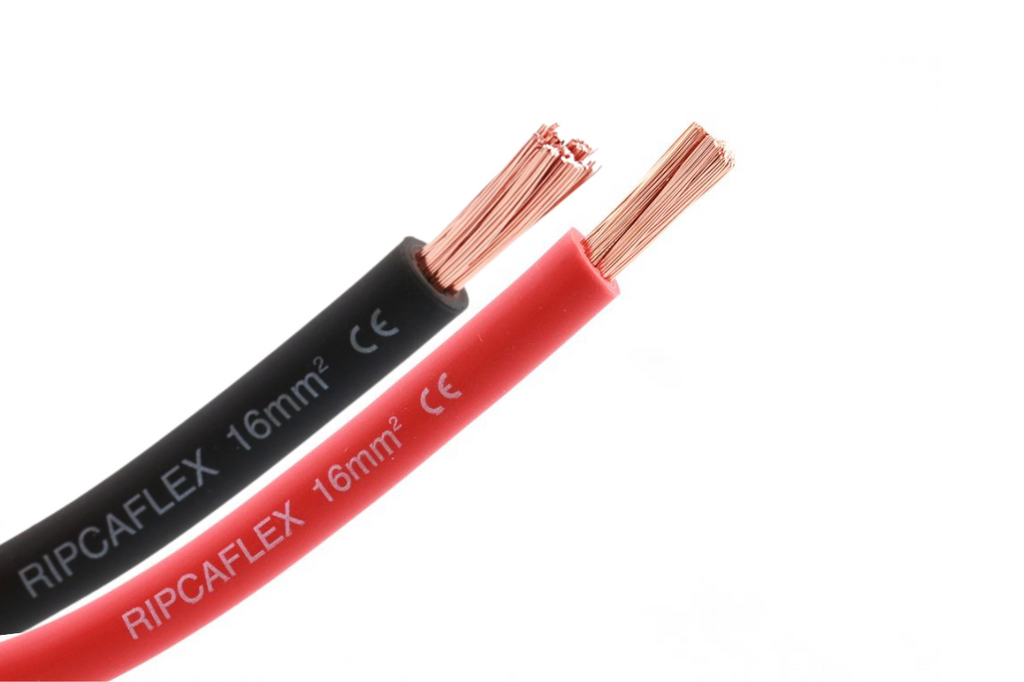

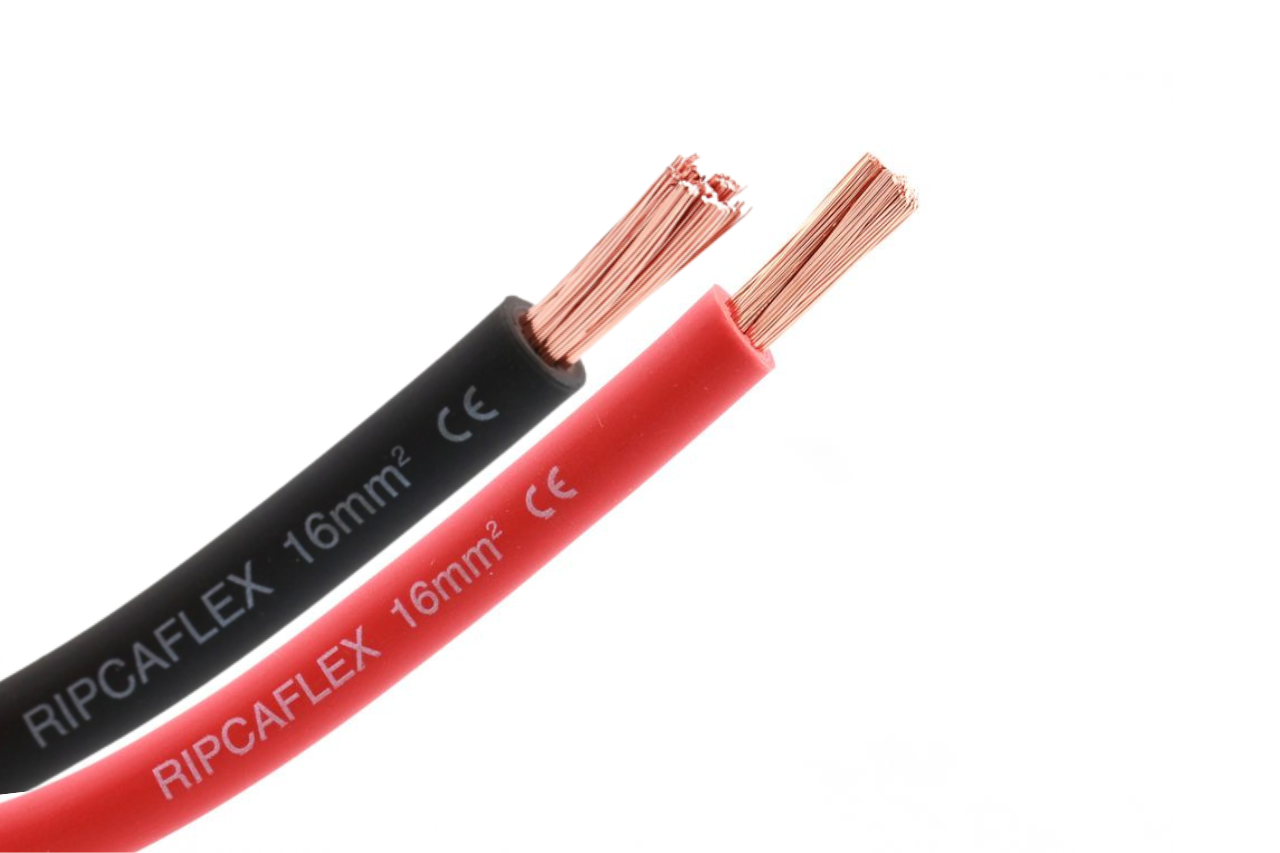

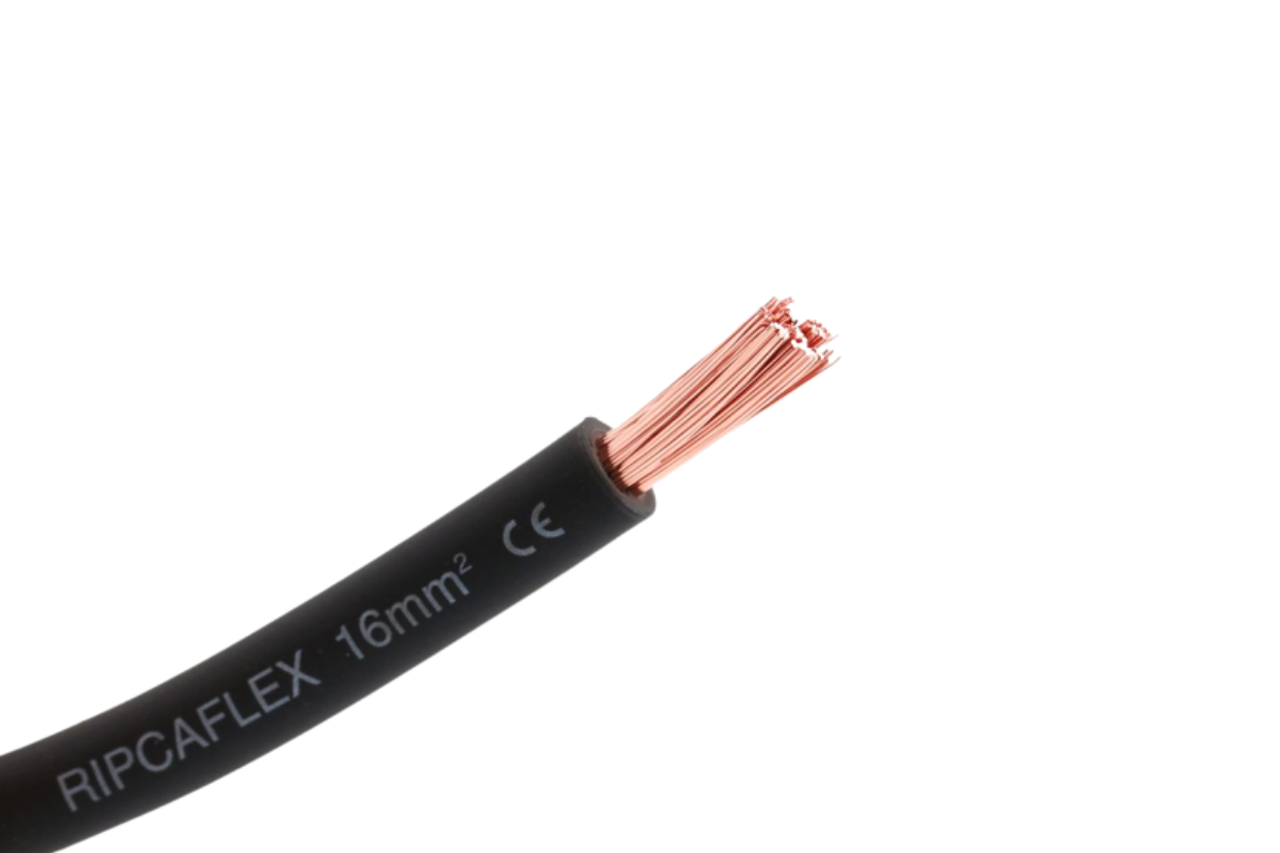

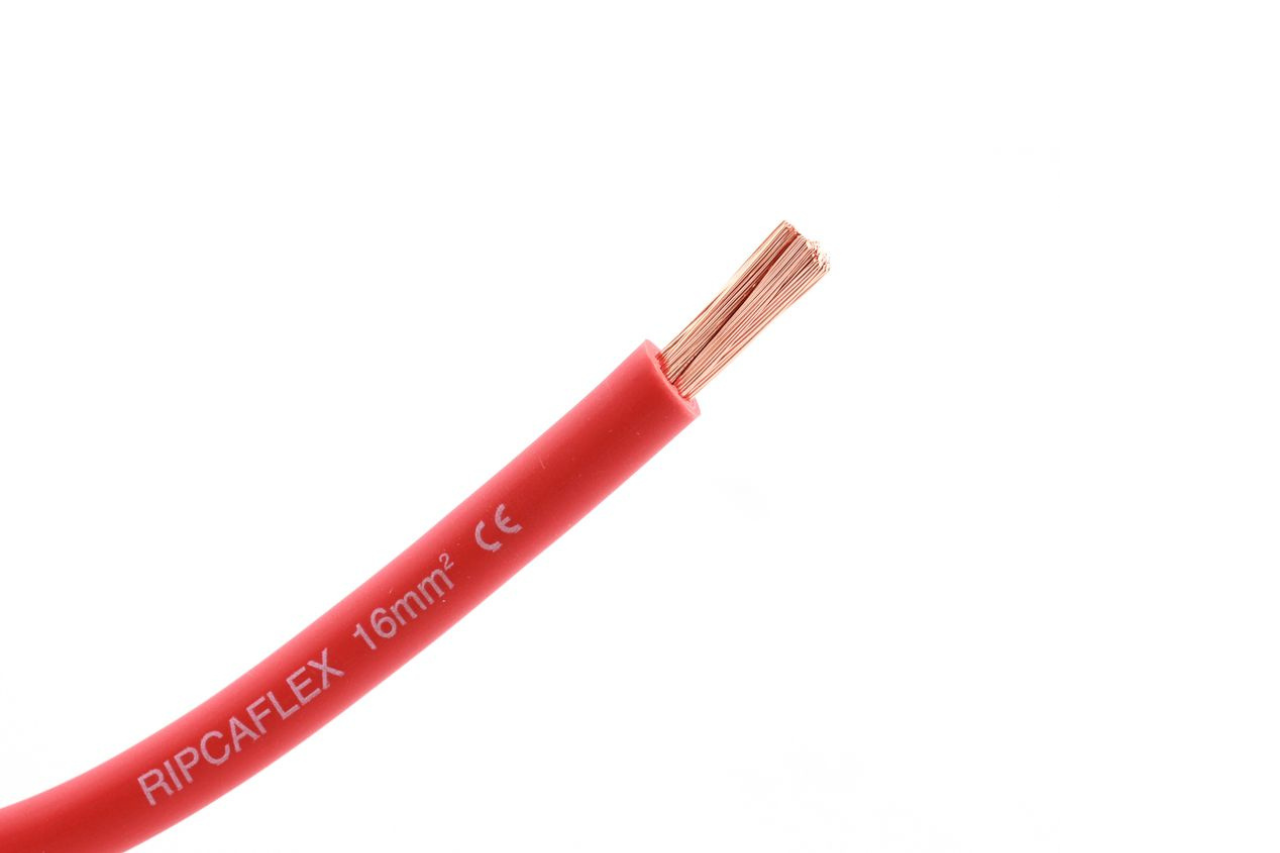

High quality Italian battery cable and is the most flexible cable out there making it a breeze to work with.
Product Features:
- Available per meter, 10 or 50 meter reels
- Bulk quantities on request
- Cable size - 16.0mmsq
- Cable Shape - Round
|
Cable size |
16.0mm² |
|
Nominal conductor construction (Wires x Ø mm) |
204xØ 0.30mm |
|
Max conductor resistance (Ohm/per km) |
1.31 Ohm/km |
|
Outer Cable diameter (mm) |
7.60 - 8.00mm² |
|
Minimum Insulation Thickness (mm) |
1.16mm |
|
Insulation Type |
Soft PVC according IEC 60332-1 |
|
Insulation Hardness |
70± 5 Shore A |
|
Max. Working Voltage |
600V |
|
Temperature Rating |
+5ºC/+70ºC |
|
According requirements |
IEC332-1/CEI EN 50265 |
