Description

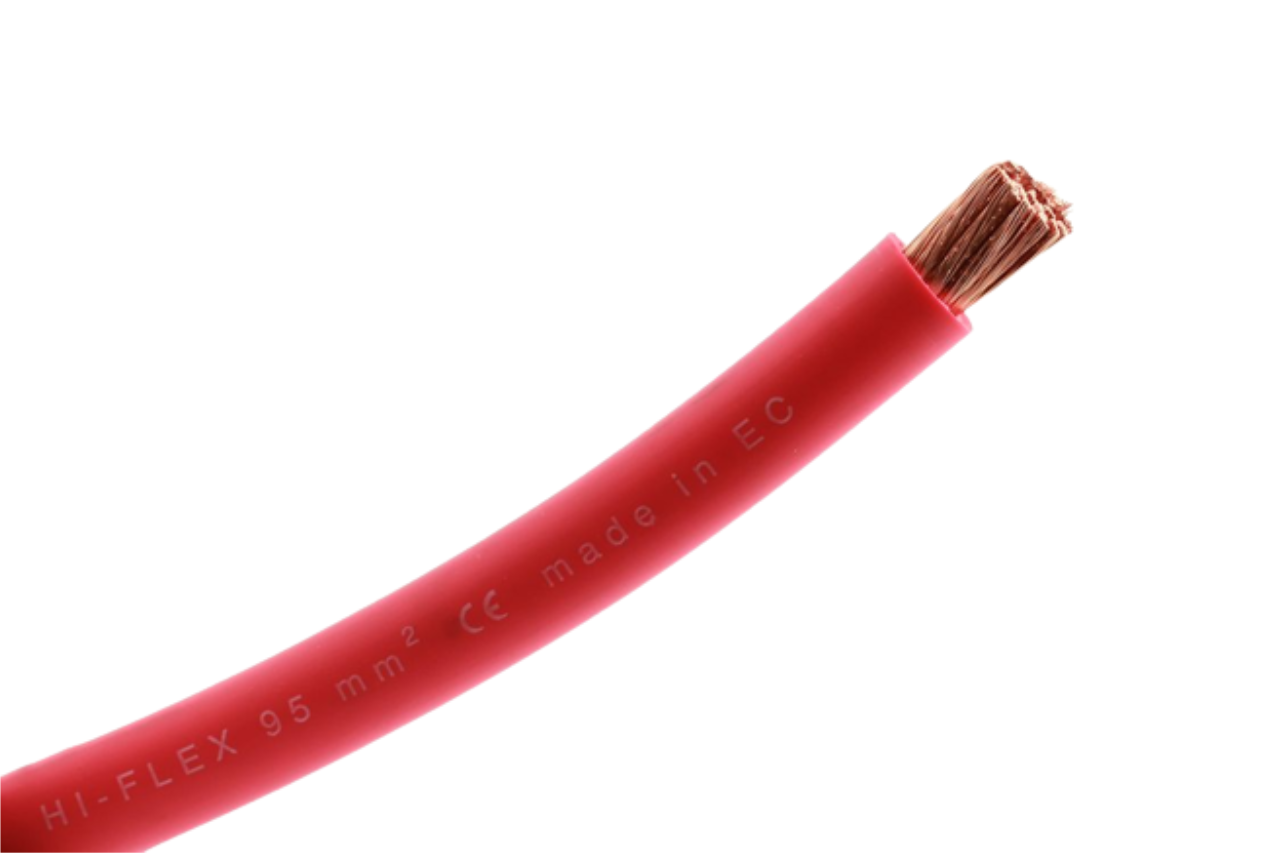

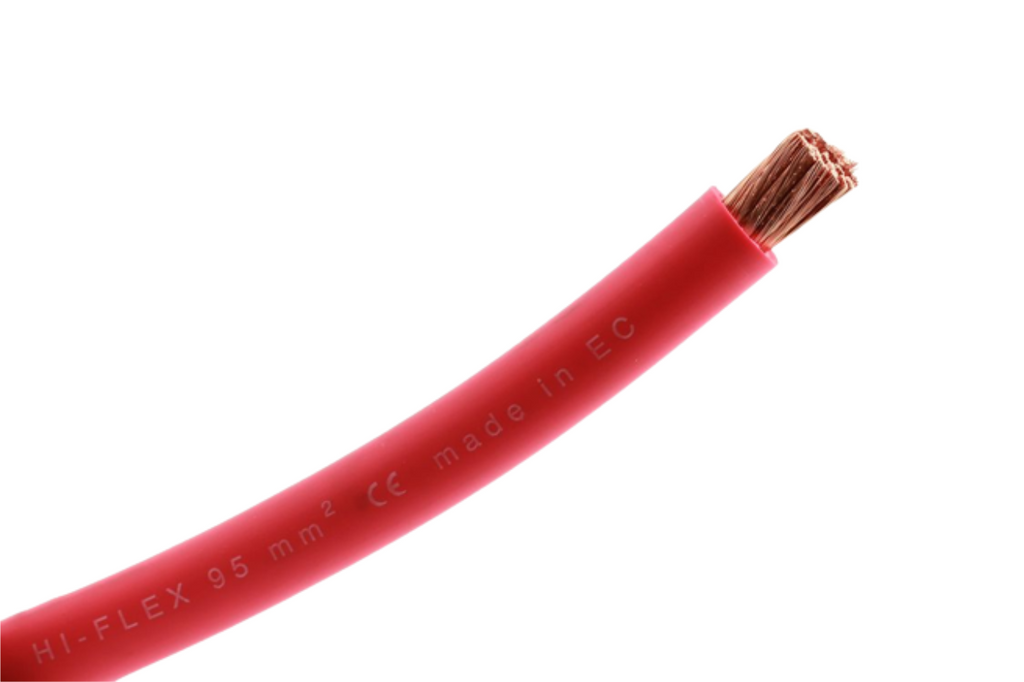

High quality, flexible Italian battery cable that is easy to work with.
Select the required colour and length option before ordering. For options sold per metre, a quantity of 1 means 1 metre of cable; a quantity of 2 means 2 metres.
Product Features:
- Available by the metre or in 10m reels, in black or red
- Bulk quantities on request
- Cable size - 95.0 mm²
- Cable Shape - Round
|
Cable size |
95.0mm² |
|
Nominal conductor construction (Wires x Ø mm) |
1224xØ 0.30mm |
|
Max conductor resistance (Ohm/per km) |
0.22 Ohm/km |
|
Outer Cable diameter (mm) |
18.05 - 18.35 mm |
|
Minimum Insulation Thickness (mm) |
1.70mm |
|
Insulation Type |
Soft PVC according IEC 60332-1 |
|
Insulation Hardness |
70 ± 5 Shore "A" |
|
Max. Working Voltage |
600V |
|
Temperature Rating |
+5ºC/+70ºC |
|
According requirements |
IEC332-1/CEI EN 50265 |
