Description

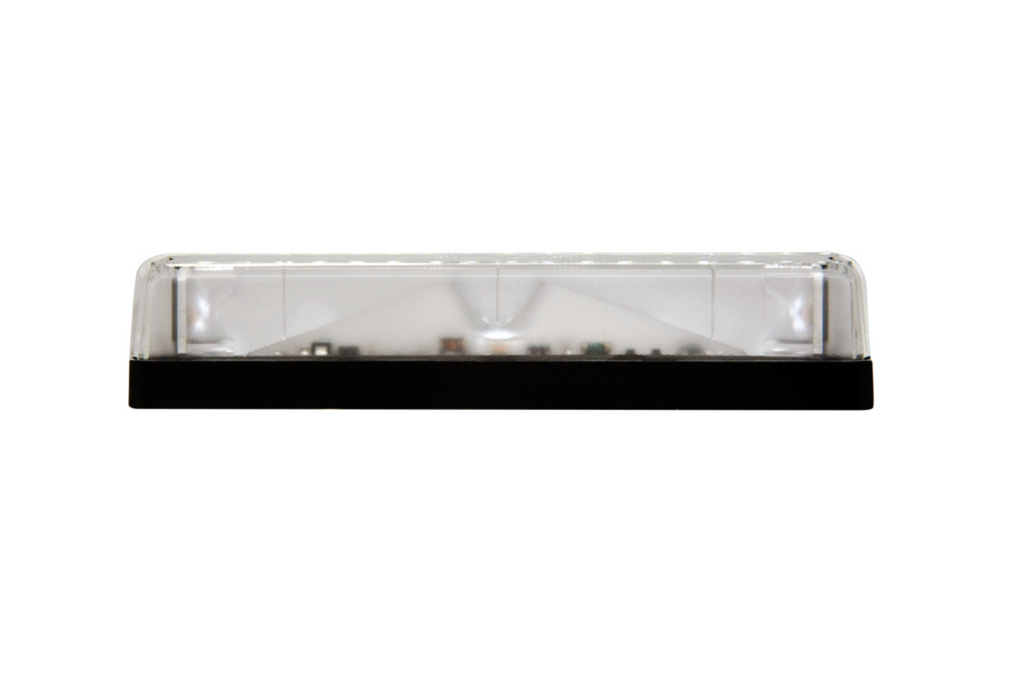

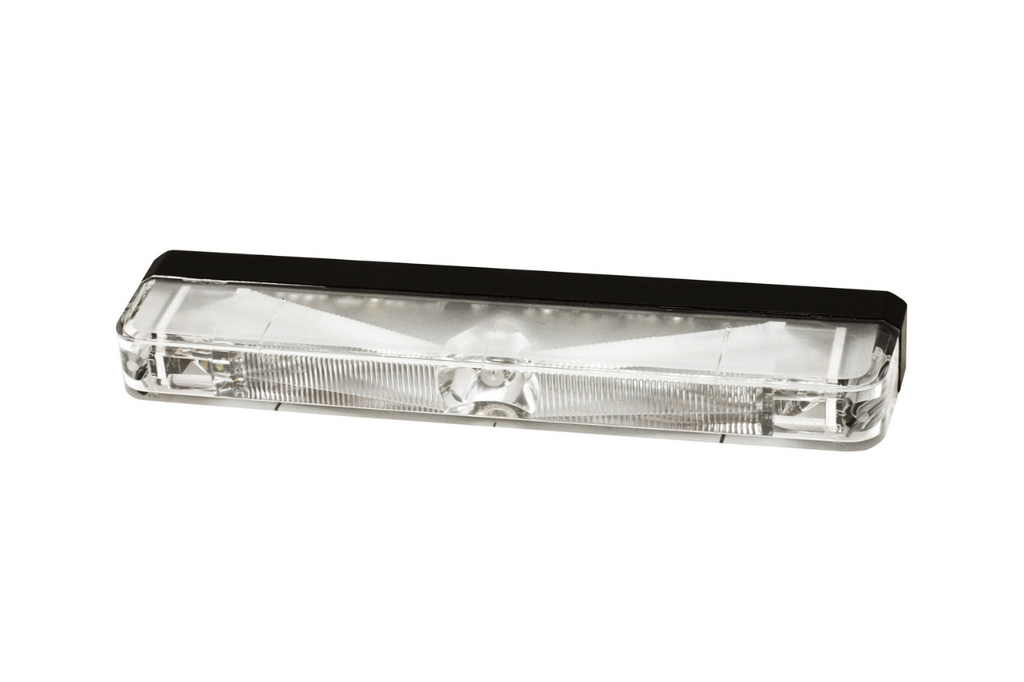

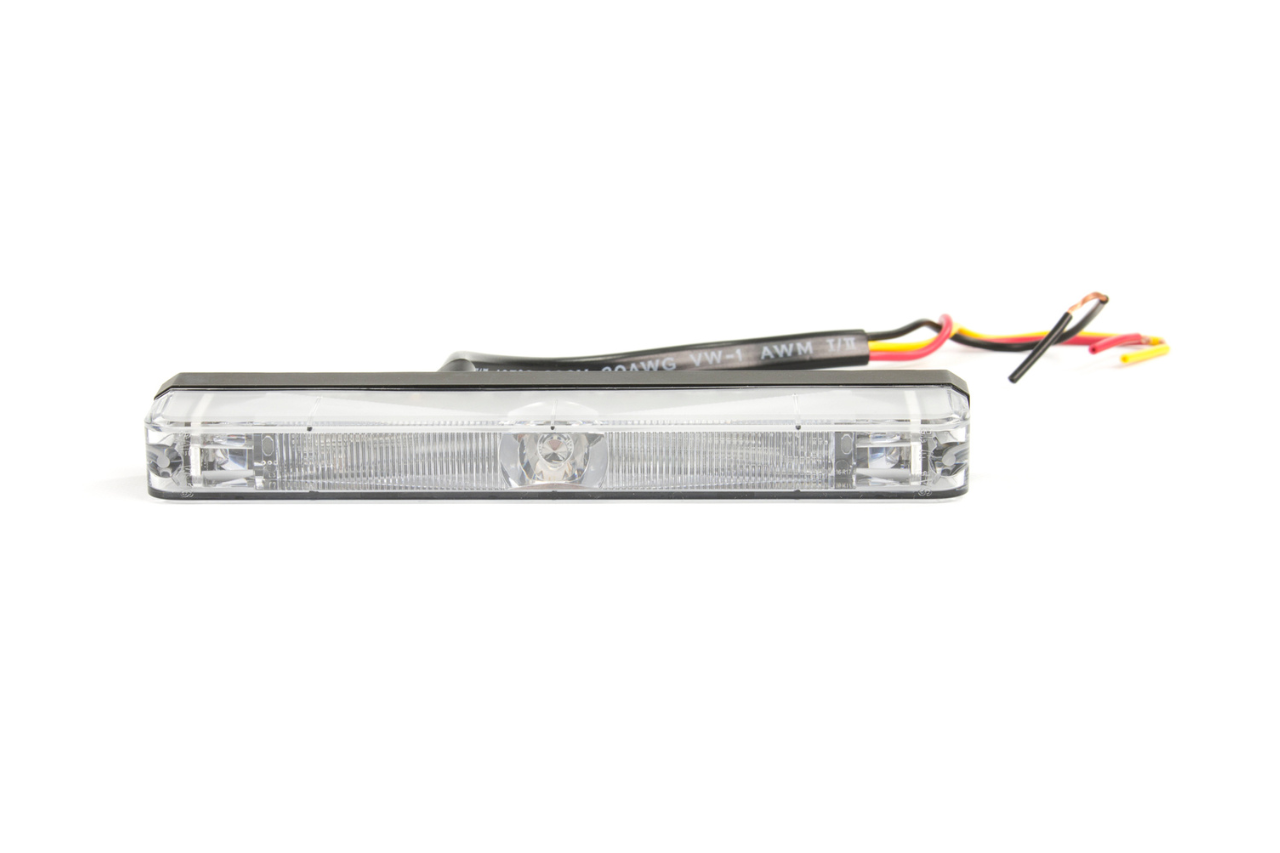

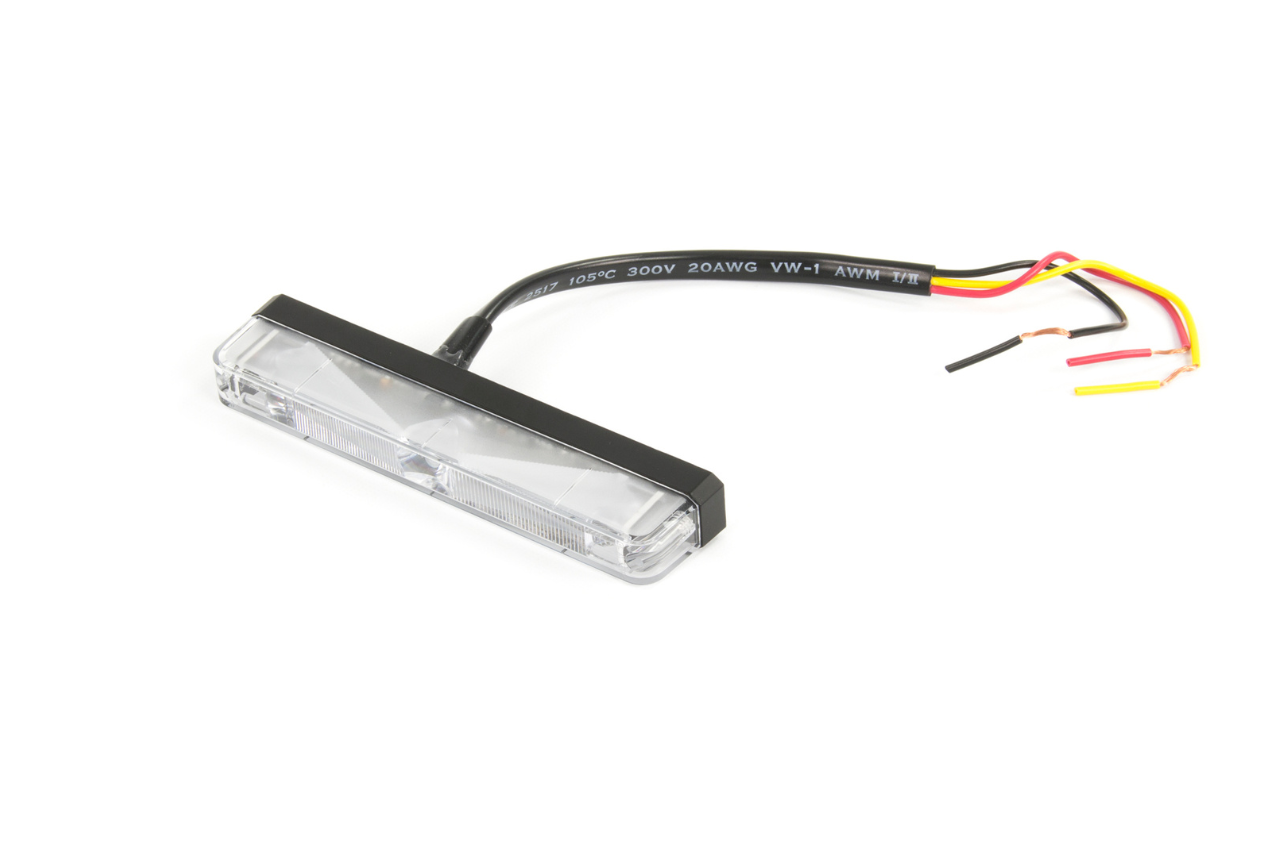

LEDDES3 3 LED narrow profile warning lamp

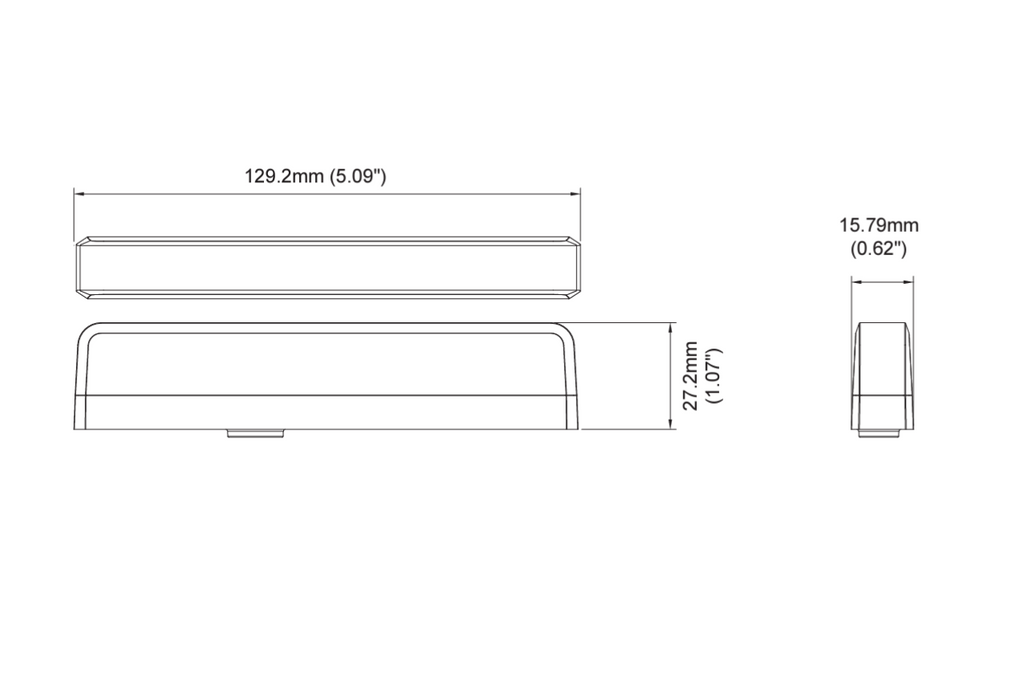

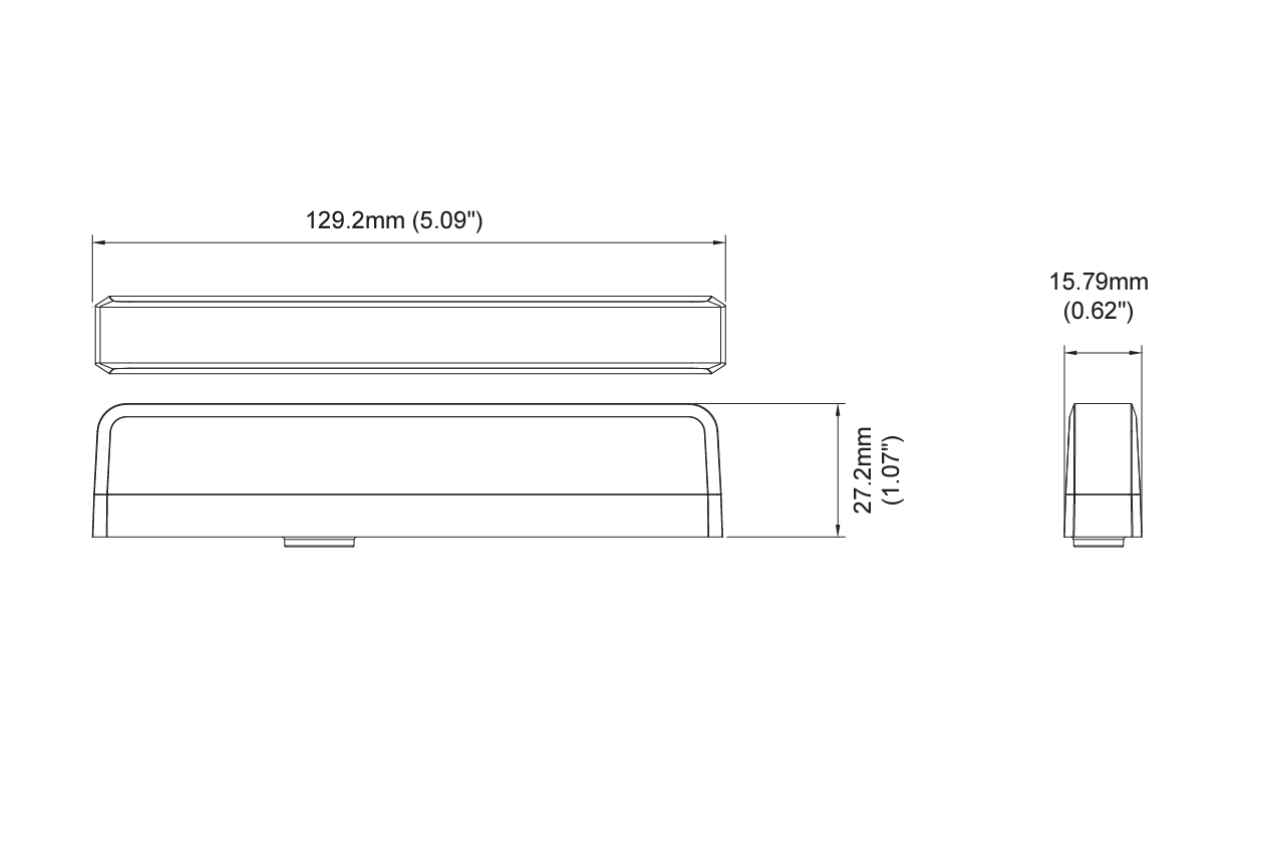

Dimensions: 129.2mm (L) x 27.2mm (H) x 15.79mm (D)
Features:
- 15.79mm narrow profile lamp

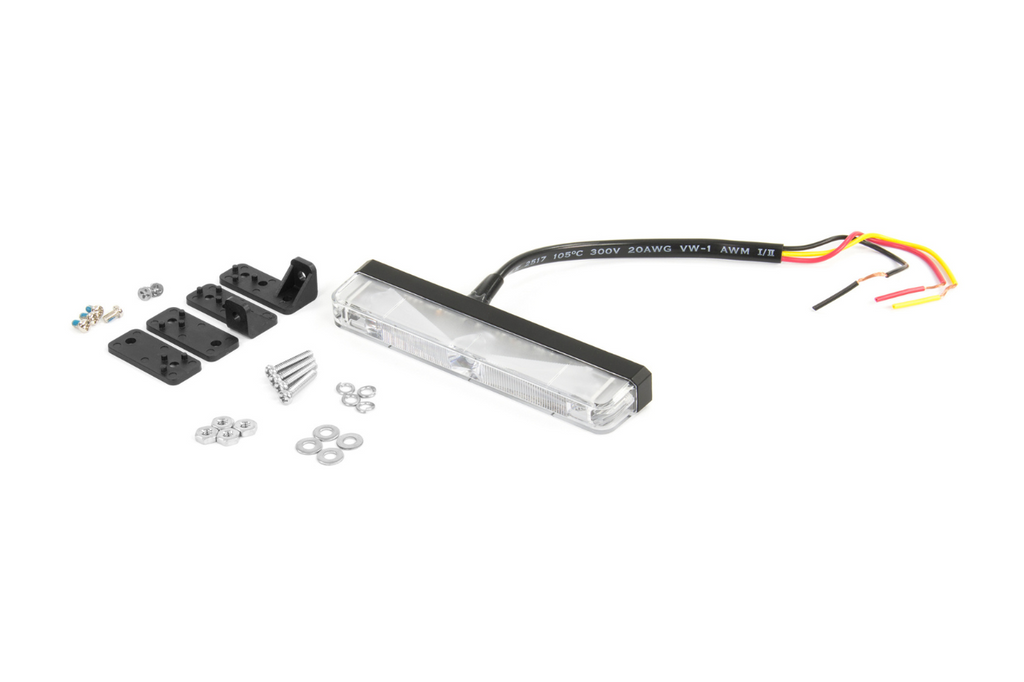

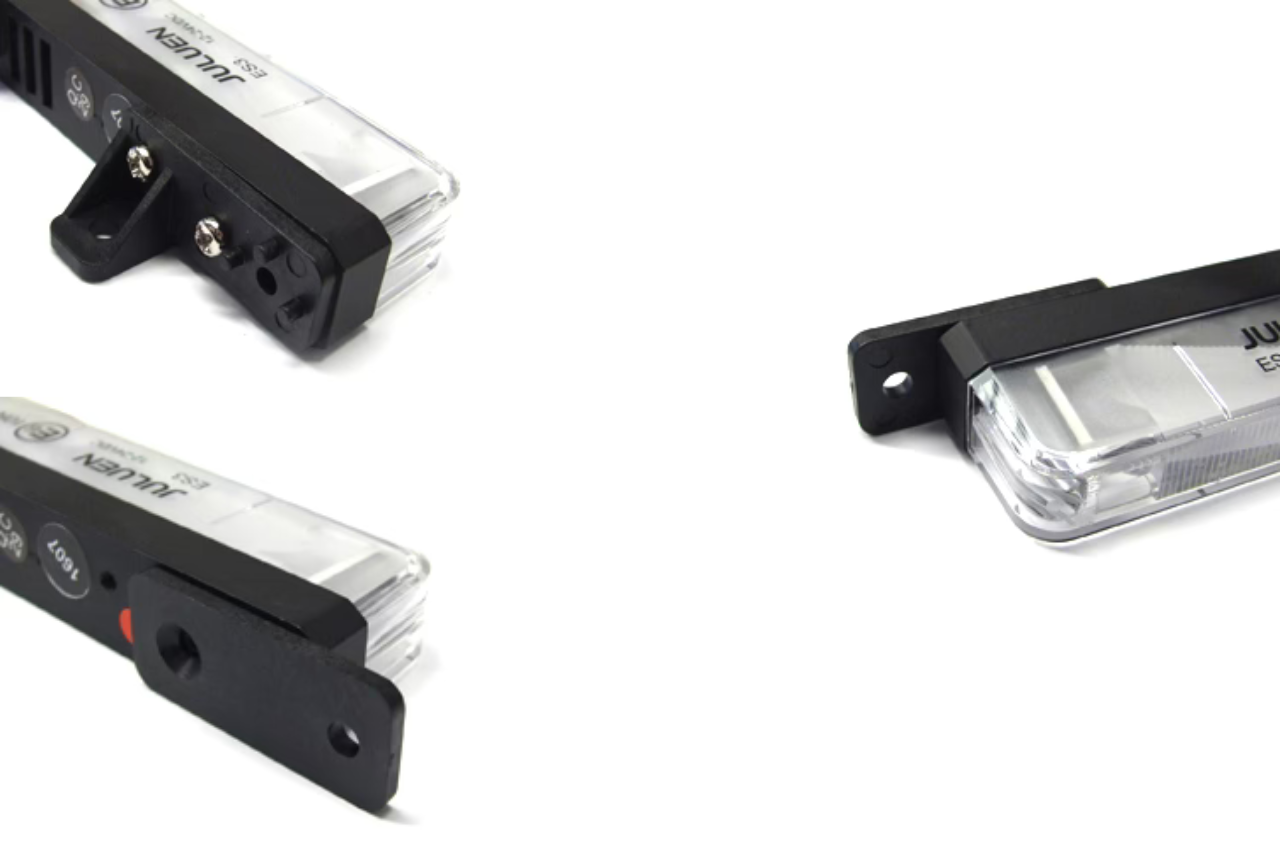

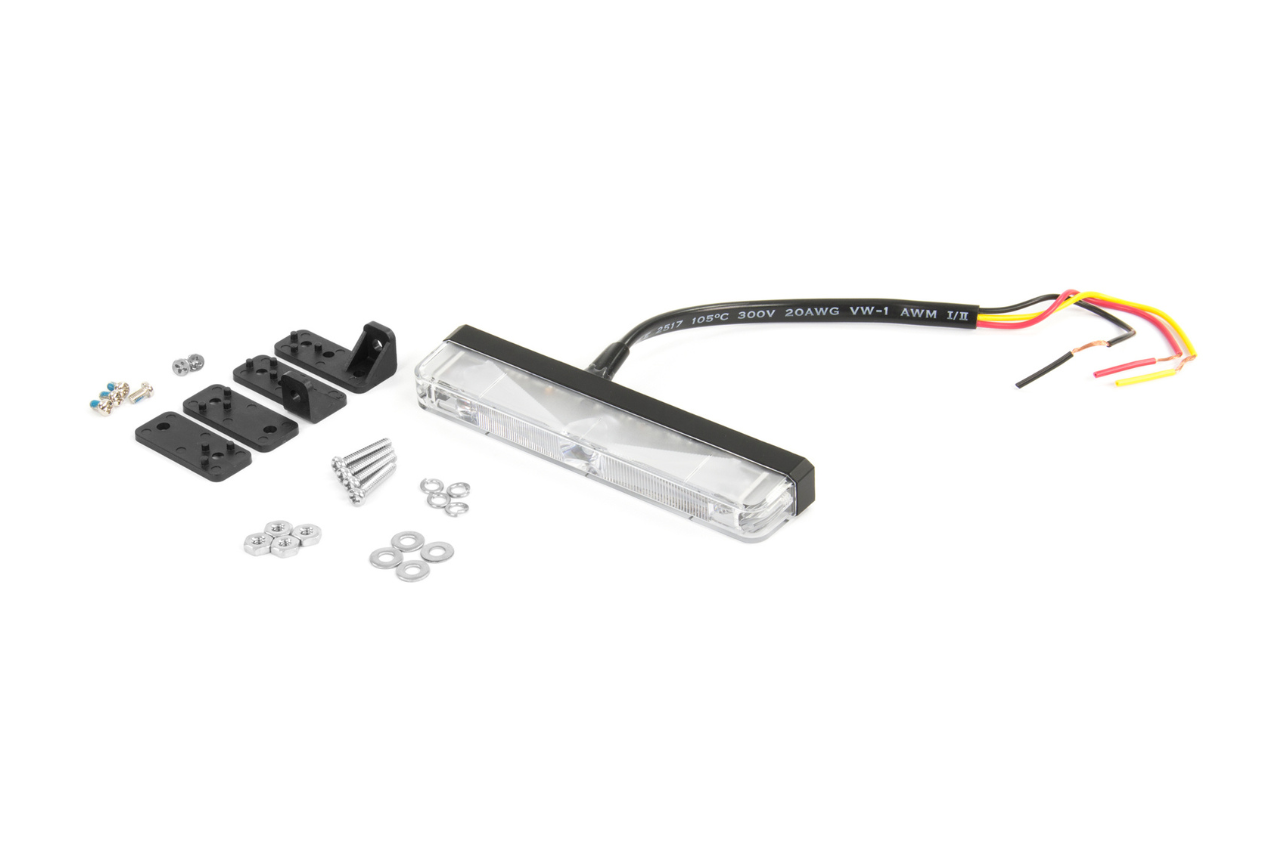

- Universal angle adjustable bracket to mount virtually anywhere
- New unique optical design for efficient and powerful light output
- ECE R10 EMC compliant
- 100,000 rated hours of long life LEDs
- Non-volatile flash pattern memory
- Multiple units can be synced simultaneously or with alternating flashes
- Reverse polarity protection
- Weatherproof and vibration resistant

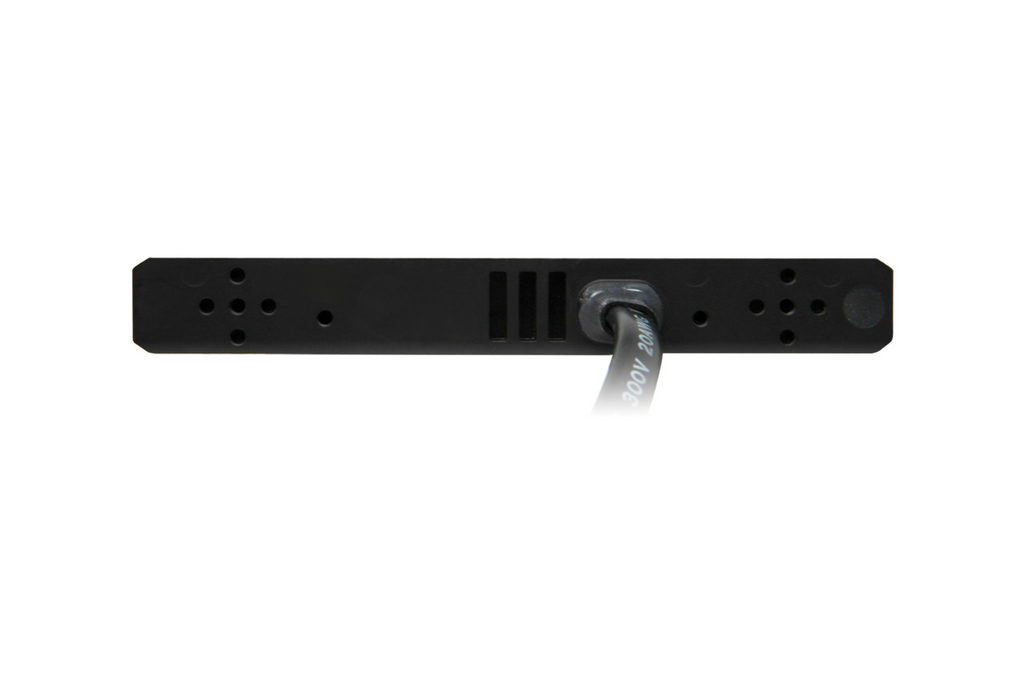

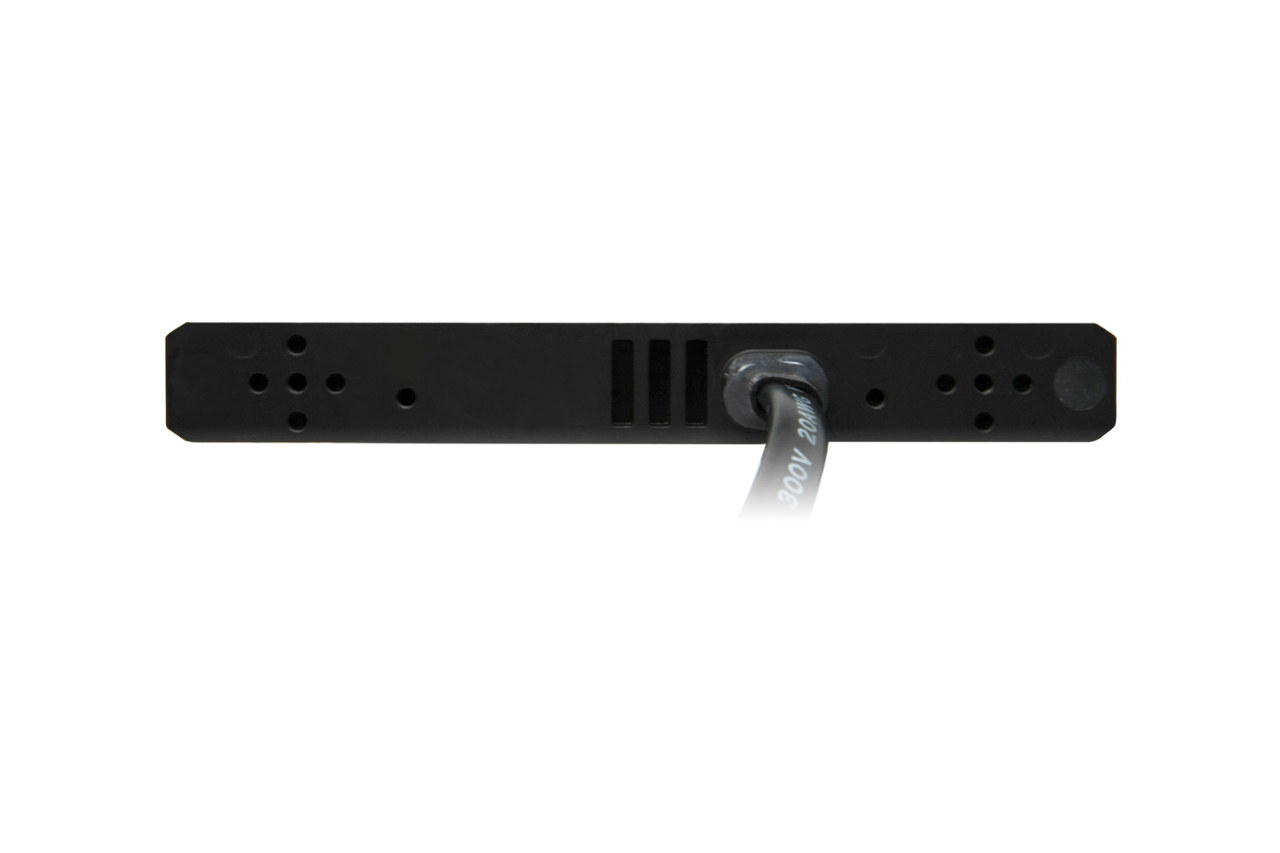

- Aluminium base for heat dissipation
Specifications:
- Approval: SAE J595 Class 1, CA13, ECE R10,
- IP Rating: IP67
- LEDs: 3 x high power LEDs
- Voltage: 12/24V
- Average Current: 0.4A @ 12V / 0.2A @ 24V (varies with flash pattern)
- Average Power: 4.74 Watts (varies with flash pattern)
- Max Current: 0.79A @ 12V / 0.4A @ 24V
- Max Power: 9.48 Watts

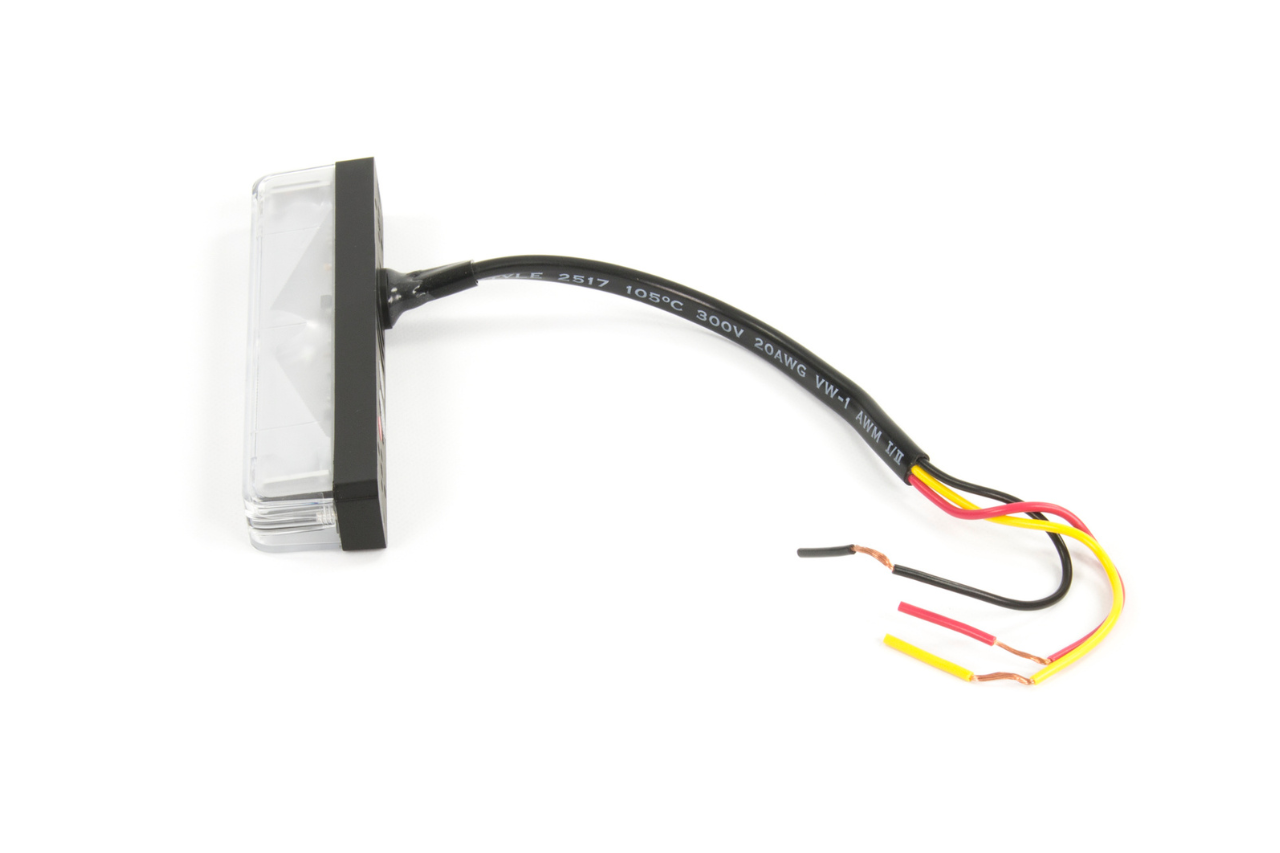

- Wires: Red-Vcc: 25cm (20AWG) / Black-GND: 25cm (20AWG) / Yellow-Sync: 25cm (20AWG)
- Recommended Fuse: 1A
- Colours Available: amber, blue, clear or red
- Part no: LEDDES3
