Description
PRODUCT DESCRIPTION
Dimensions: 85.6mm (L) x 27.7mm (H) x 15.7mm (D)
Features:

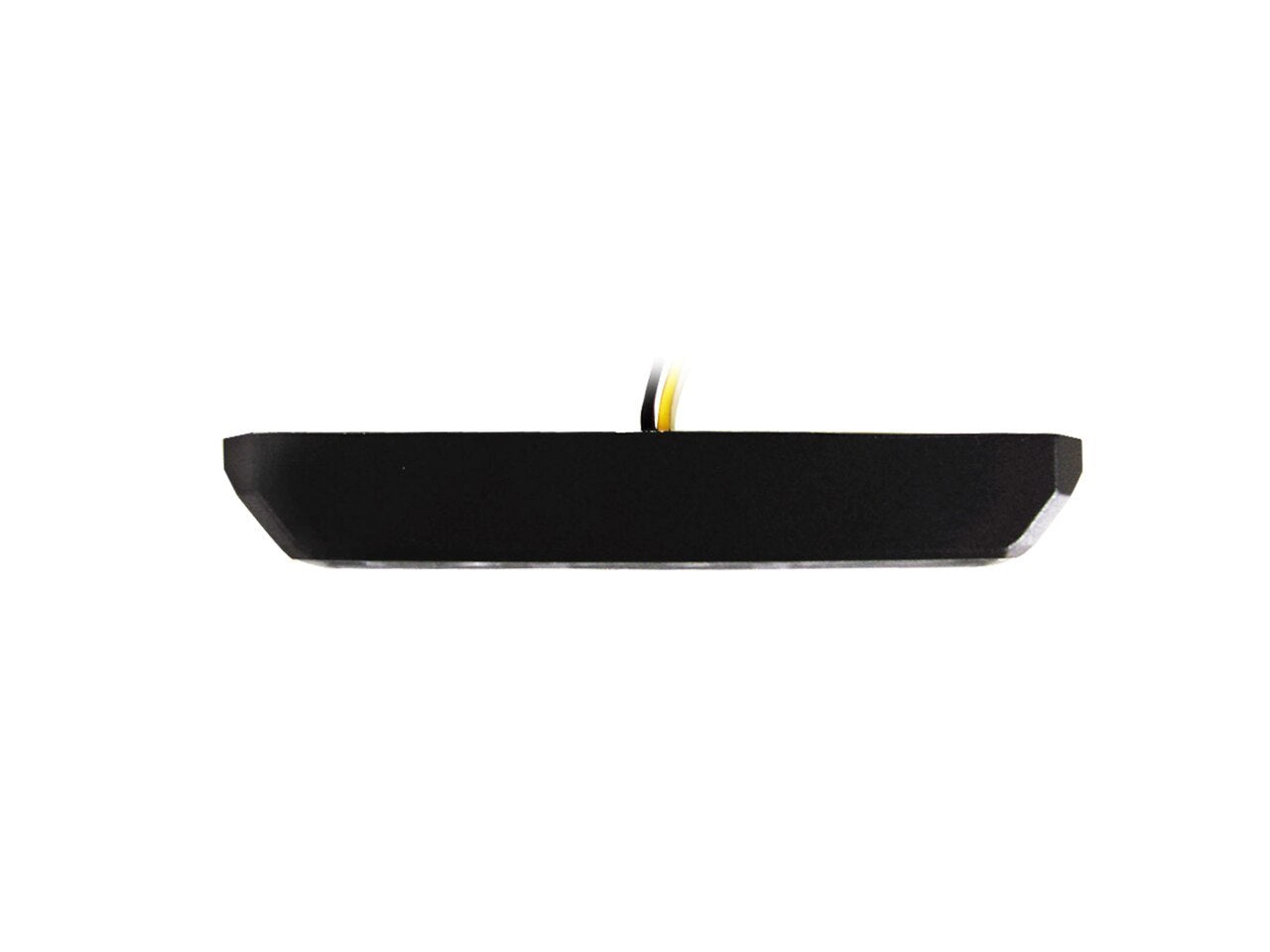

- Super low profile for discreet mounting.
- Multi-Voltage Input 12~24VDC.
- Built-in 15 Selectable Flash Patterns and 3 modes (Top-Down, Left-Right, Criss-Cross).
- Built-in Low Power function
- LEDs rated to 100,000 hours of operation.
- Non-volatile memory recalls last flash pattern used at power up.
- Multi-units synchronization.
- Reverse polarity protection.
- Weatherproof and vibration resistant design for versatile application.

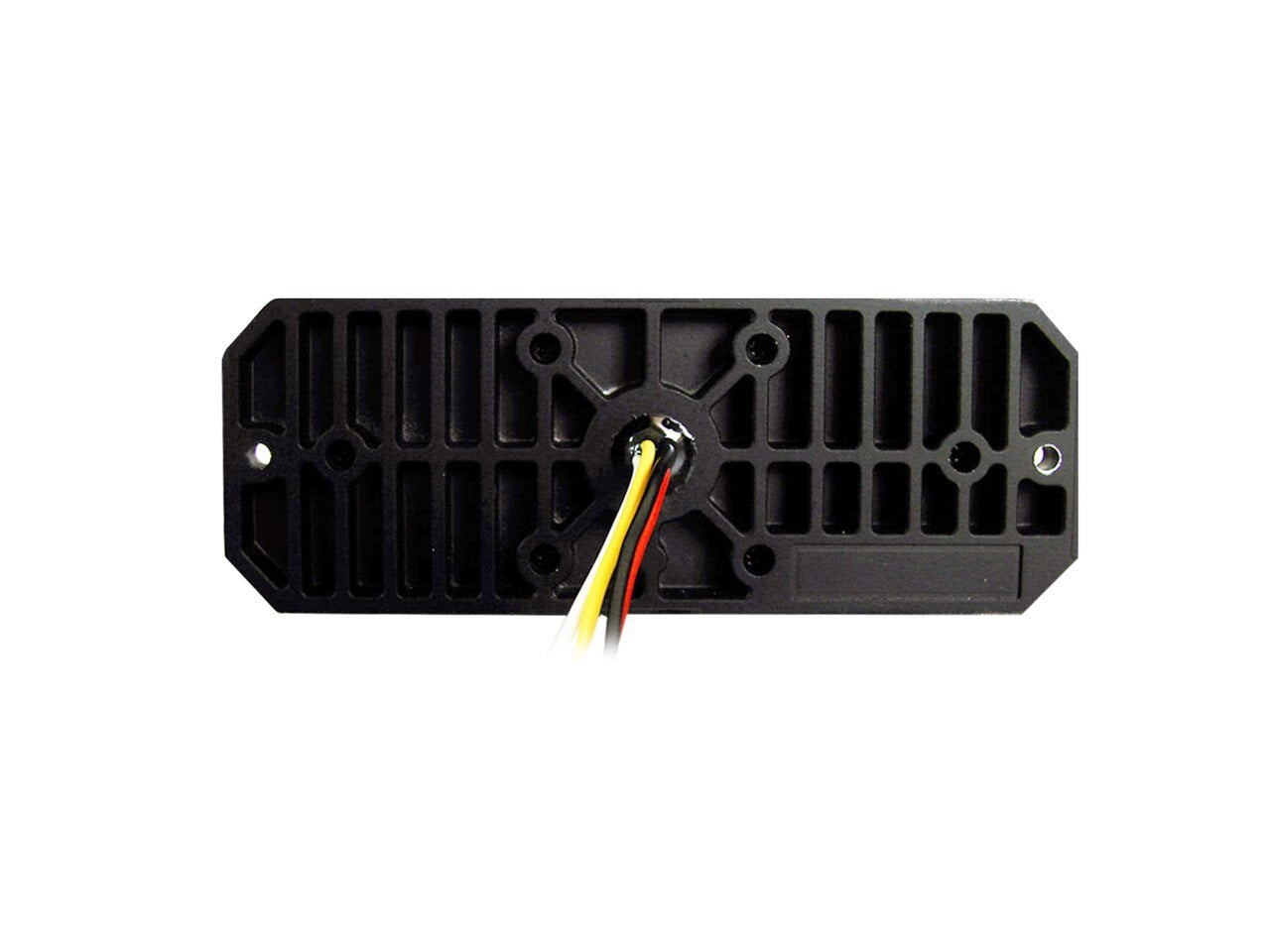

- Aluminum base for efficient heat dissipation.
Specifications:
- Meets: SAE, Title XIII, e13, ECE R65 (XA2, XB2)

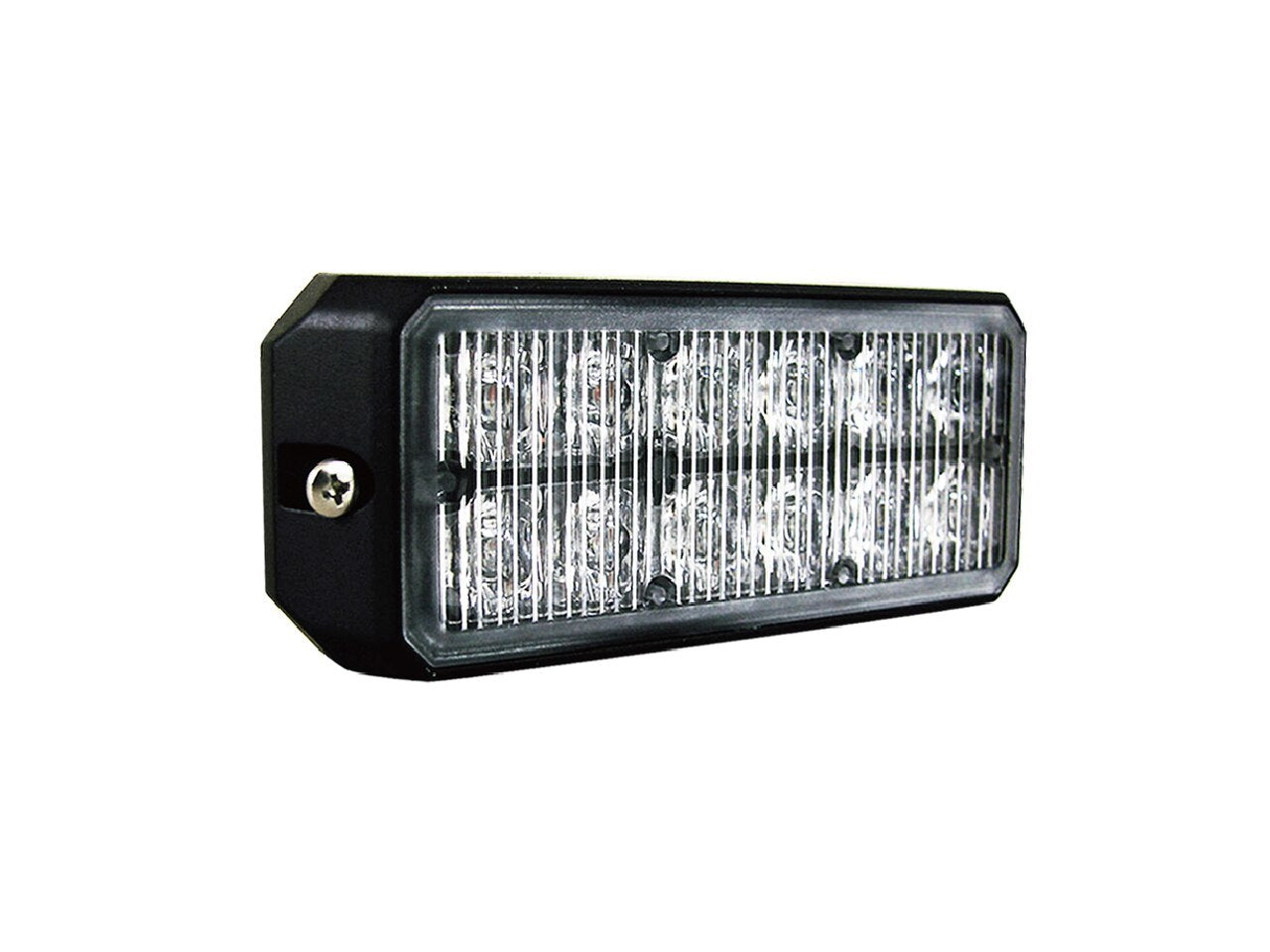

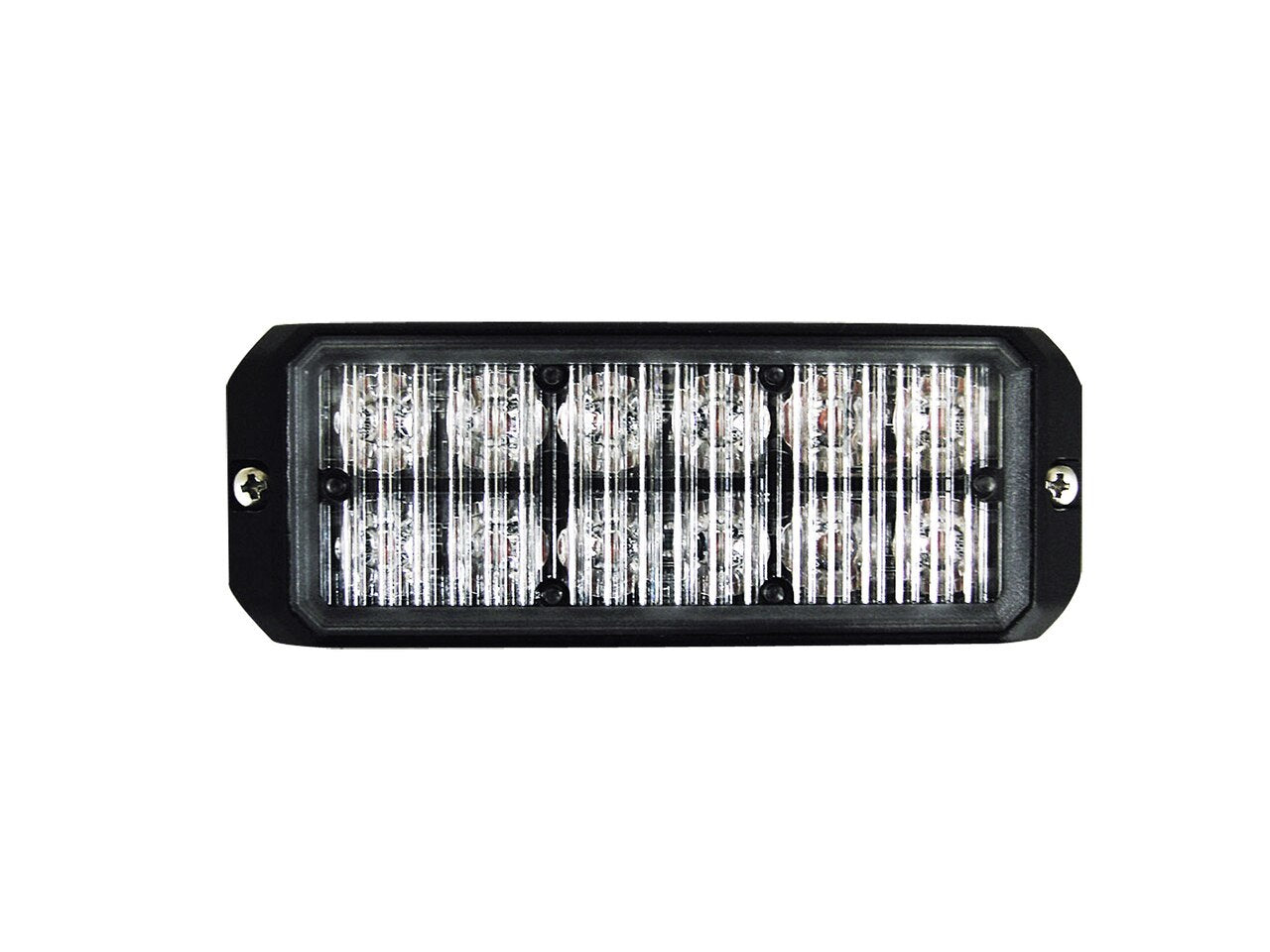

- Bulb: High-power LED x 12 pcs
- Warning Patterns: 25 Flash Patterns
- Operating Voltage: 11~30VDC
- Avg. Current: 0.75A@12VDC / 0.38A @24VDC (Amber / Red), 1.25A@12VDC / 0.63A @24VDC (Blue / White)
- Avg. Power: 9 Watts (Amber / Red), 15 Watts (Blue / White)
- Max. Current: 1.5A@12VDC / 0.75A @24VDC (Amber / Red), 2.5A@12VDC / 1.25A @24VDC (Blue / White)
- Max. Power: 18 Watts (Amber / Red), 30 Watts (Blue / White)
- Wires: Red-Vcc : 20cm (20AWG) Black-GND : 20cm (20AWG) White-Low Power : 20cm (20AWG) Yellow-Flash Patterns & Sync : 20cm (20AWG)
- Fuse Recommended: 5A
- Multi-Unit Synchronization: Over 15 units
- Available in: RED, BLUE, AMBER, WHITE
