Description
PRODUCT DESCRIPTION

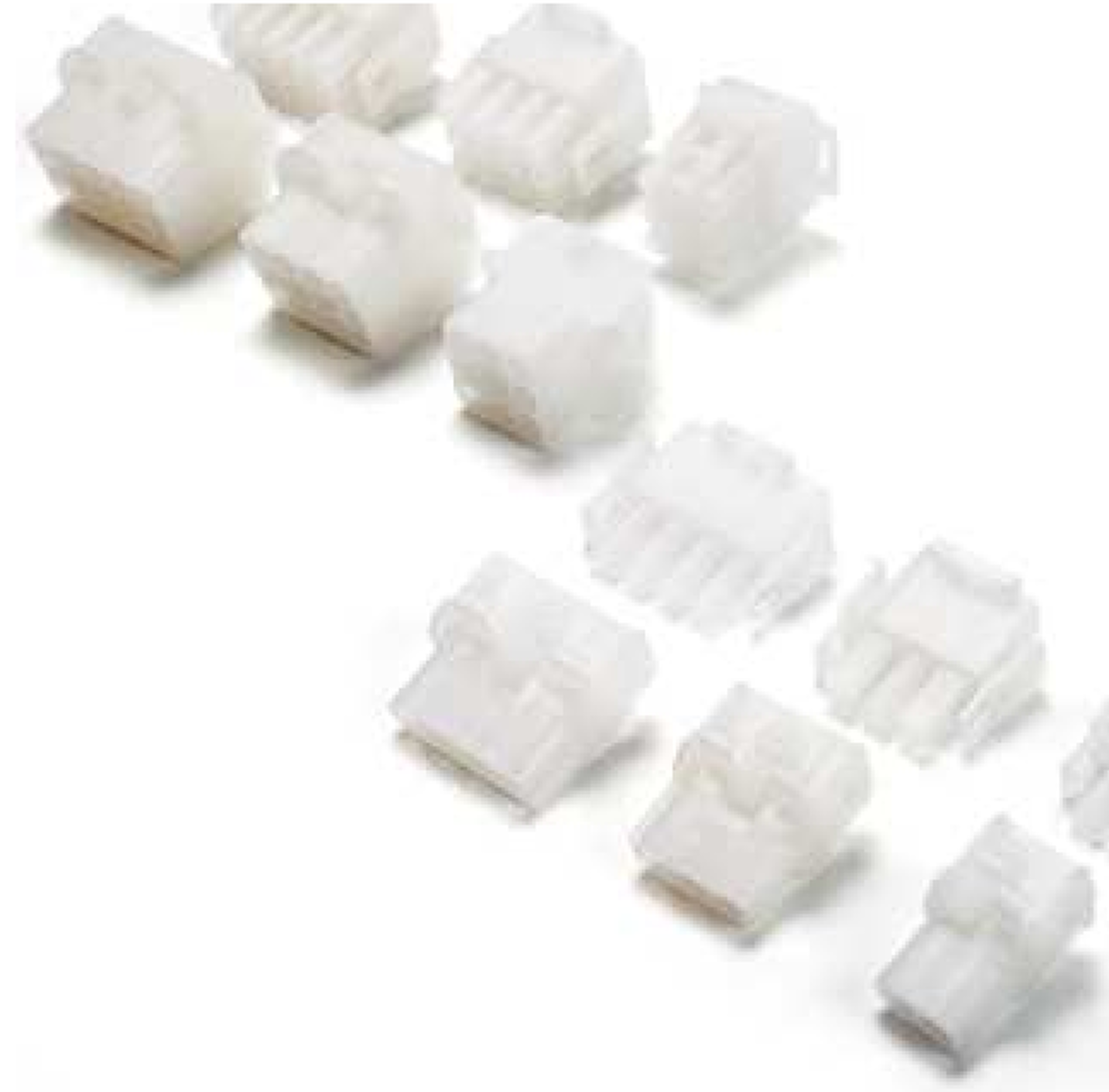

The Universal MATE-N-LOK connectors are a versatile and reliable solution for power connections in a wide range of applications. These connectors are designed to meet industry standards, offering both robustness and flexibility in design. With features such as polarization, positive locking, and rear cavity identification, they ensure an easy and error-resistant assembly process. The housings accept both pin and socket contacts, which can be intermixed within the same housing, providing great design versatility. They are suitable for wire-to-wire, wire-to-board, and panel mount designs, making them a go-to choice for engineers in various fields. The connectors operate within a temperature range of -55 to +105°C and have a maximum current rating of 19A, accommodating wire sizes from 30-10 AWG. With a voltage rating of 600 VAC/VDC and positions available from 1-15, they cater to a broad spectrum of power needs. Additionally, the Universal MATE N LOK connectors come in sealed versions with an IP57 rating, ensuring protection against environmental challenges. They also meet the IEC 60335-1 Glow-Wire test and have UL 94 V-0 and V-2 ratings, which attest to their safety standards. The availability of different colors and keying options further enhances their applicability across various industries, including appliances, industrial machinery, and energy management systems.
