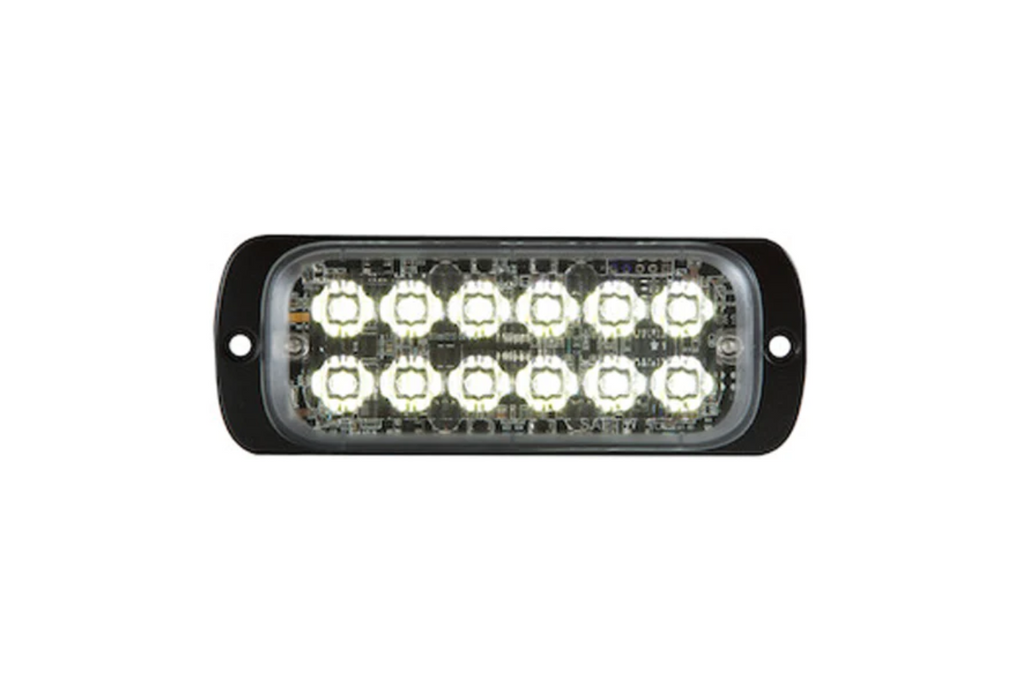

Super Thin ECE R65 12 LED warning lamp - ST26
Dimensions: 114.6mm (L) x 43.4mm (H) x 9mm (D) ---- 104mm in length from hole centres
Features:
- 9mm super low-profile thickness
- 12/24V
- 25 flash patterns
- 100,000 rated hours of long-life LEDs
- Multi-units synchronization in simultaneous or alternating flash
- Reverse polarity protection
- Weatherproof and shock proof
- Slim base design
- Aluminium base for durability and heat dissipation
- Part no. - LEDDST26
Specifications:
- Approval: SAE J595 Class 1 (R,A,B,W) ; ECE R65 Class 2 (A,B) ; ECE R10
- LEDs: 12 x high power LEDs
- Flash Patterns: 25
- Voltage: 12/24V
- Average Current: 0.78A @ 12V / 0.39A @ 24V (varies with flash pattern)
- Average Power: 9.25 Watts (varies with flash pattern)
- Max Current: 1.56A @ 12V / 0.78A @ 24V
- Max Power: 18.5 Watts

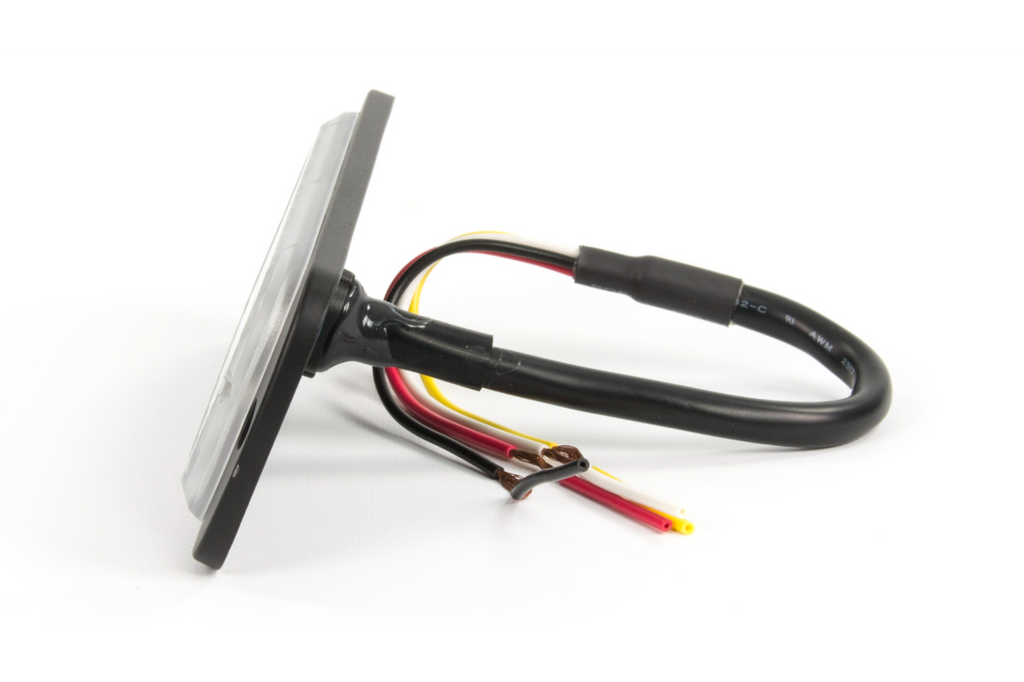

- Wires: Red-Vcc: 25cm (20AWG) / Black-GND: 25cm (20AWG) / White-Low Power: 25cm (20AWG)
- Recommended Fuse: 3A
- Max to Syn Together: Over 15 lamps
- Colours Available: amber, blue, clear or re
